Name: Thermal printer ECG Rechargeable ECG ECG data storage ECG analysis software EMR/EHR integration
Brand: TECHNOCARE MEDISYSTEMS
Price: 30000.0 INR
Availability: InStock

Thermal printer ECG Rechargeable ECG ECG data storage ECG analysis software EMR/EHR integration Specification

Material
Plastic & Metal

Product Type
Thermal Printer ECG Machine

Automation Grade
Automatic

Phase
Single Phase

Accuracy
2 bpm or 2%

Display Type
Digital LCD

Application
Medical/Diagnostic

Height
77 mm

Dimension (L*W*H)
315 mm x 215 mm x 77 mm

Power
Rechargeable Battery/AC Adaptor

Frequency
50/60 Hz

Treatment Type
Cardiac Diagnostics

Function
ECG Recording, Printing, Data Storage, Analysis

Humidity Range
95% (non-condensing)

Properties
Portable, Rechargeable, Multi-channel

Suitable For
Hospitals, Clinics, Ambulances

Color Code
White/Blue

Storage Capacity
ECG Data Storage up to 1000 files

Weight
2.2 Kg

Temperature Range
5C ~ 40C

Use
Electrocardiogram Analysis

Shape
Rectangular

Voltage
100-240V AC

Display
LCD Display

Power Source
Battery/AC Mains

Optional Features
Barcode Scanner, External Storage

Recording Speed
25/50 mm/sec selectable

Leads Supported
12 Channel Standard

EMR/EHR Integration
Yes, supports export to EMR/EHR systems

Internal Memory
Built-in, expandable via USB

Battery Backup
Up to 4 hours continuous use

ECG Data Transfer
USB/WiFi optional

Paper Size
80 mm/210 mm (width optional)

Safety Standard
Conforms to IEC60601-1

Printer Type
Thermal Line Printer

ECG Analysis Software
Integrated with Interpretation

Thermal printer ECG Rechargeable ECG ECG data storage ECG analysis software EMR/EHR integration Trade Information

Minimum Order Quantity
1 Number

FOB Port
surat

Supply Ability
1000 Per Day

Delivery Time
1 Days

Sample Available
No

Sample Policy
Within a certain price range free samples are available

Main Export Market(s)
North America

Thermal printer ECG Rechargeable ECG ECG data storage ECG analysis software EMR/EHR integration About

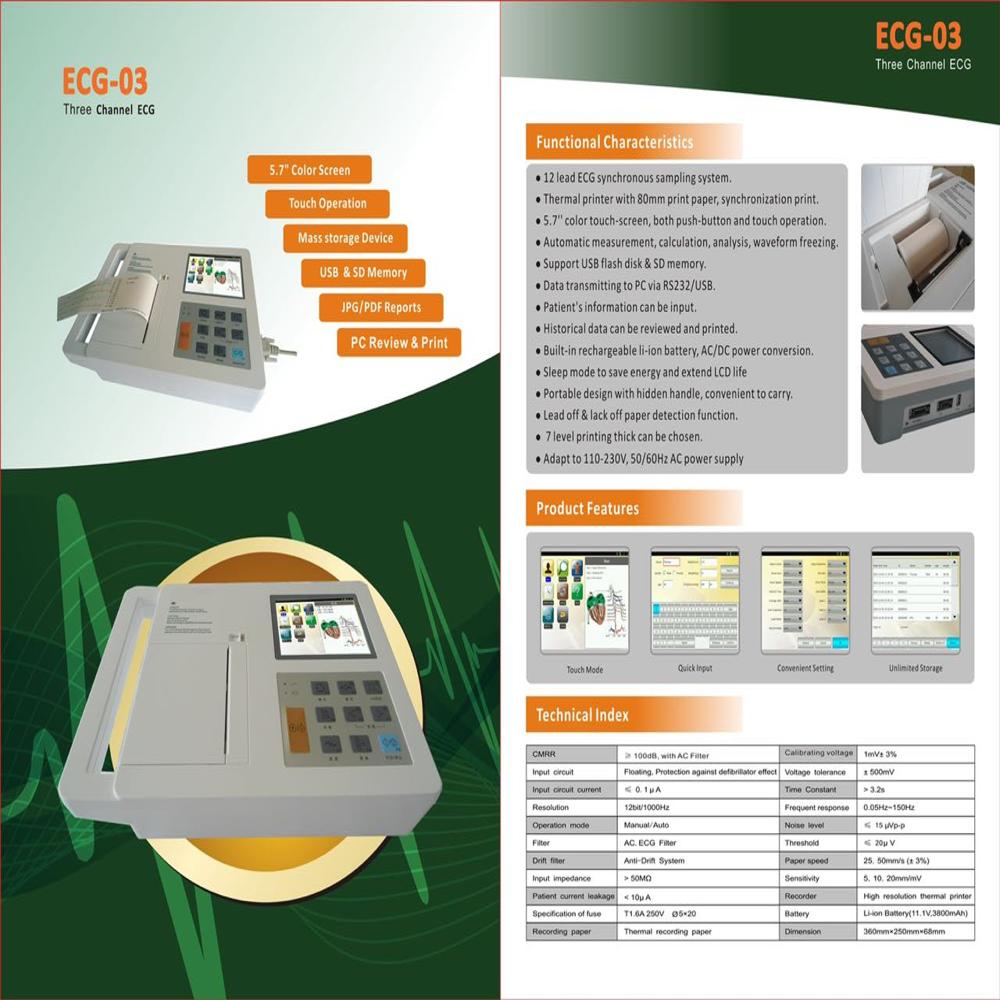

12 Leads Ecg Synchronous Sampling Systems
Thermal Printer With 80mm Print Paper, Sychronization Print
5.7 Color Touch Screen, Both Push Botton And Touch Operation
Autometic Measurement,calculation,analysis, Waveform Freezing
Support Usb Flash Disk And And Sd Memory
Data Transmitting To Pc Via Rs232/usb
Patient Information Can Be Input
Historical Data Can Be Reviewed And Printed
Built In Rechargable Lion Betetry, Acdc Power Conversion
Sleep Mode To Save Energy And Extend Lcd Life
Portable Design With Hidden Handle, Convient To Carry
Lead Off And Lack Off Paper Detection Fuction
7level Printing Thick Can Be Choosen
Adapt To 110-230v, 50/60hz Ac Power Supply
Product Features:
Touch Mode
Quick Input
Unlimited Storage
Convenient Setting

Efficient and Portable Cardiac Diagnostics

With a weight of just 2.2 kg and sturdy construction using plastic and metal, this ECG machine is highly portable and reliable, fitting perfectly into busy clinical or emergency settings. The device boasts up to 4 hours battery backup, making it perfect for continuous on-the-go use in hospitals, ambulances, or remote clinics.

Advanced ECG Data Handling and Connectivity

Equipped with integrated ECG analysis software and vast internal memory, the machine conveniently stores up to 1000 ECG recordings and enables effortless data transfer via USB or optional WiFi. EMR/EHR integration allows seamless connectivity with modern hospital systems, promoting efficient patient management and record-keeping.

User-Friendly Operation and Flexible Printing Options

The intuitive LCD digital display, selectable recording speeds (25/50 mm/sec), and optional paper widths (80 mm/210 mm) support varied diagnostic needs. An automatic operation grade and straightforward interface enhance usability for healthcare professionals, improving workflow and reducing potential for errors.

FAQ's of Thermal printer ECG Rechargeable ECG ECG data storage ECG analysis software EMR/EHR integration:

Q: How does this ECG machine store and transfer patient data?

A: The ECG machine is equipped with built-in internal memory that can store up to 1,000 ECG recordings. For extended capacity, data can also be saved to an external USB device. Transferring the data is straightforward via USB port or optional WiFi, and the device supports exporting results to EMR/EHR hospital systems for effective patient records management.

Q: What benefits does the integrated ECG analysis software provide?

A: The integrated ECG analysis software automatically interprets ECG signals, providing clinicians with precise diagnostic insights. This streamlines workflow, reduces manual calculation errors, and allows faster and more reliable interpretation of cardiac activity, benefiting both healthcare professionals and patients alike.

Q: Where can this ECG machine be effectively utilized?

A: Thanks to its portability, rechargeable battery, and robust design, this ECG machine is perfectly suited for hospitals, clinics, ambulances, and even field medical setups. Its lightweight structure and extended battery backup ensure dependable operation wherever accurate cardiac assessment is needed.

Q: What process should be followed to operate the ECG printer and record data?

A: To use the ECG printer, simply power it via the rechargeable battery or AC adaptor, attach the 12 standard leads to the patient, then employ the user-friendly LCD interface to begin recording. The device offers selectable paper widths and recording speeds, enabling customizable printouts tailored to specific diagnostic requirements.

Q: When does the machine indicate low battery, and how should it be recharged?

A: The device provides on-screen battery indicators on its LCD display. When a low battery status is detected, simply connect the machine to the mains using the provided AC adaptor. The battery will recharge, ensuring continued operation without workflow interruption.

Q: What are the safety standards and operating conditions for this ECG machine?

A: This machine complies with IEC60601-1 safety standards, ensuring safe operation in medical environments. It operates efficiently in temperatures between 5C and 40C and humidity up to 95% (non-condensing), making it reliable across a wide range of clinical settings.
