Leads: Standard 12 leads (I, II, III, aVL, aVR, aVF, and V1V6).
A/D conversion: 12-bit or higher for excellent signal quality.
Sampling rate: 1000 Hz or higher for accurate data acquisition.
Input impedance: A high impedance of over 50 M to minimize signal distortion.
CMRR (Common Mode Rejection Ratio): Typically >90 dB, with some models exceeding 100 dB to suppress power line interference.
Power supply: Operates on both mains (AC) and a rechargeable lithium-ion battery for portability.
Memory: Internal memory to store a large number of ECG cases, often expandable via USB or SD card.
Connectivity: USB ports for data transfer and sometimes LAN/WLAN (Wi-Fi) for connection to hospital information systems (HIS).
Sensitivity: Adjustable sensitivity settings (e.g., 2.5, 5, 10, 20 mm/mV).
Paper speed: Adjustable paper speeds (e.g., 12.5, 25, 50 mm/s).
Safety: Must conform to medical device safety standards (e.g., European CE, USFDA) and include defibrillation protection

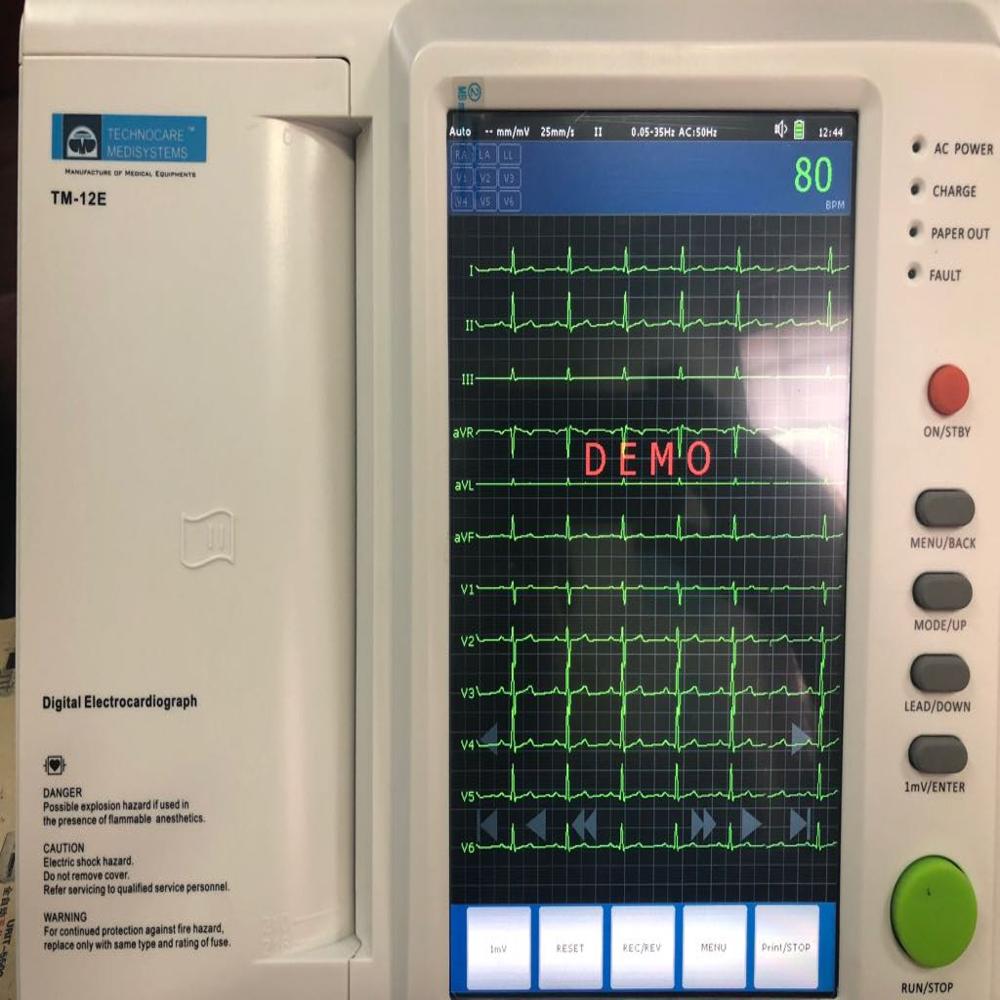

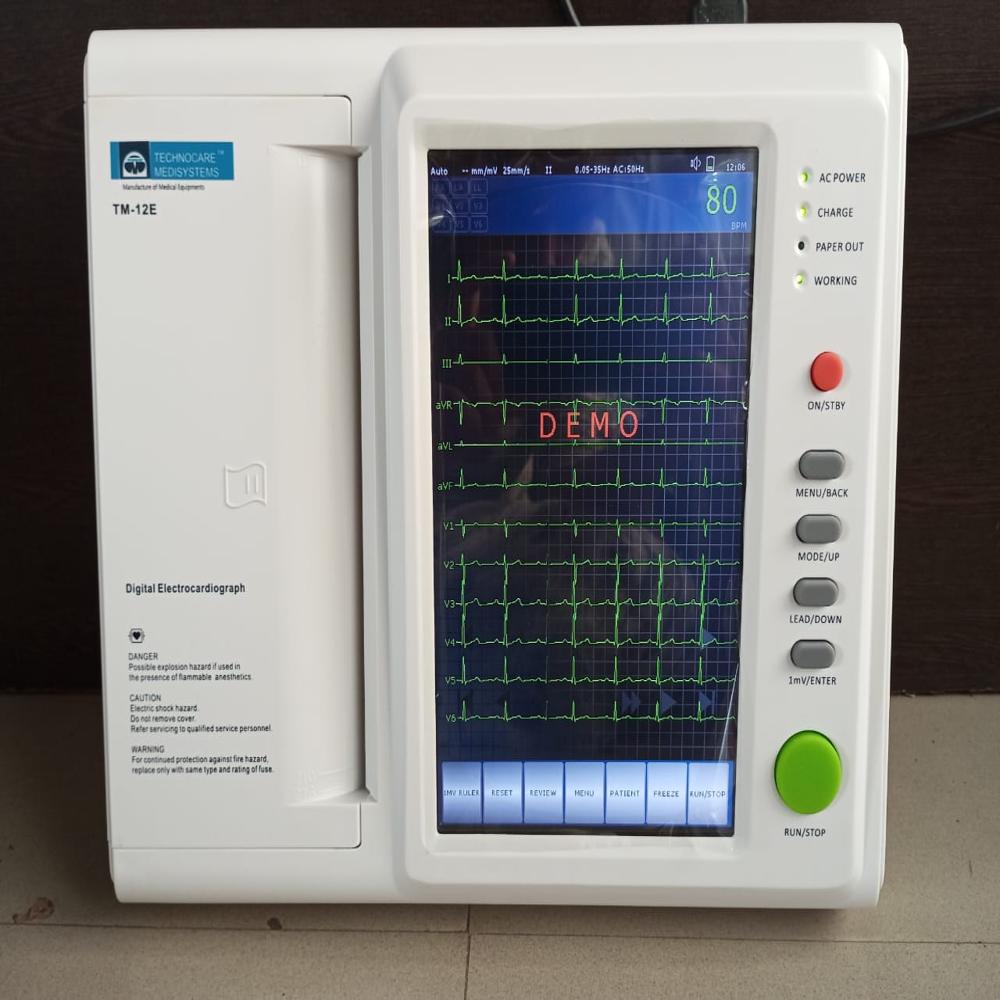

Comprehensive and Reliable Cardiac Assessment

Utilizing 12-channel lead modes, the Digital ECG Machine provides detailed and precise readings of the heart's electrical activity for comprehensive cardiac assessment. Its baseline, AC, and EMG filters ensure clear traces, while automatic QRS detection enhances diagnostic accuracy. Built to comply with rigorous medical standards, it meets the diverse diagnostic needs of healthcare professionals.

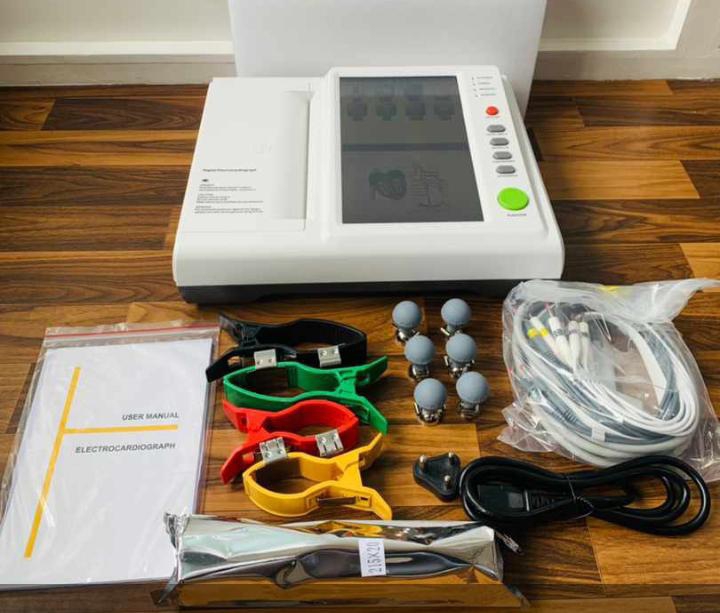

Easy Operation with Durable, Portable Design

With both keypad and touch controls, this ECG machine offers an intuitive user experience. Weighing only 2.1 kg and compactly sized (315 x 215 x 77 mm), its portable design is paired with long battery backup, making it ideal for use in various medical settings. The device's robust ABS plastic and metal construction ensures durability, even with frequent transportation.

Advanced Data Handling and User-Friendly Features

The ECG machine integrates a thermal printer, USB port, and SD card slot, allowing for efficient data storage and transfer. It can hold up to 100 ECG records, supports PC connectivity for seamless workflow, and provides multilingual operation to accommodate users in diverse clinical environments. Indicators like lead-off and low battery alarms maximize operational efficiency and patient safety.

FAQ's of Digital ECG machine:

Q: How does the Digital ECG Machine ensure accurate and reliable ECG results?

A: The device utilizes 12-channel lead modes combined with automatic QRS detection and multiple advanced filters (baseline, AC, EMG) to capture clear, artifact-free ECG signals. Accuracy is further supported by high-resolution digital display, adherence to medical safety standards, and defibrillation protection for reliable cardiac assessments.

Q: What is the process for recording and storing ECG data on this machine?

A: ECG recording can be initiated through automatic or manual modes using an intuitive keypad or touch controls. Data is printed using the thermal printer (80mm width) and digitally stored on the internal memory, with space for up to 100 ECG records. Records are exportable via USB or SD card for seamless transfer to computers or medical databases.

Q: When do the alarms activate, and what types of alarms are available?

A: The ECG machine features a lead-off alarm that activates if an electrode becomes disconnected during use, and a low-battery alarm that warns the user as backup power depletes. These notifications help ensure patient safety and uninterrupted operation during assessments.

Q: Where can this ECG machine be used effectively?

A: This device is suitable for use in hospitals, clinics, and other medical institutions, and its portable, lightweight construction enables it to be easily transported and operated in diverse healthcare environments across India.

Q: What are the main benefits of using this ECG machine in a clinical setting?

A: Key benefits include quick and accurate cardiac diagnostics, multi-language support, convenient data management (storage and transfer), long battery backup, and a user-friendly interface. Its robust build and comprehensive features streamline patient assessments and improve workflow efficiency.

Q: How does the multi-language support feature enhance usability?

A: Multi-language support ensures that the ECG machine can be operated easily by medical professionals fluent in various languages, reducing the risk of user error and making the device accessible in multilingual medical settings.
